COURSE
CODE: 05
COURSE
NAME: Architectural Design II
INSTRUCTOR: Shigehiro Shishido
Design Project #1: URBAN HEALTH CENTER
A group of doctors from the nearby medical center hospital are proposing to establish a clinic to serve an old urban neighborhood.
The new building will accommodate clinical, counseling, and community outreach facilities.
Common Building Facilities
1.
Entrance
Vestibule
150 sq. ft.
This is the main entry and it connects to the Lobby/Waiting Area
2. Lobby / Waiting
Area 500
sq. ft.
3. Public Toilet
Rooms 450
sq. ft.
Two at 225 sq.
ft. each
4. Staff
Toilet Rooms 110
sq. ft.
Two at 55 sq.
ft. each
Clinic Areas
5. Nurse/Receptionist
Area
300
sq. ft.
This area has visual control over the
Lobby/Waiting Area and controls access to the Clinic Areas.
The space is
occupied by two Nurses, a Receptionist, an Appointments Secretary, and a
Cashier.
6. Medical
Records 300 sq. ft.
7. Laboratory 180
sq. ft.
8. Specimen Toilet
Room 65
sq. ft.
9.
Exam Rooms 600 sq. ft.
Six
(6) at 100 sq. ft. each
10.
Doctor’s Offices / Consultation Rooms 240 sq. ft.
Two
(2) at 120 sq. ft. each
Counseling Area
11.
Counseling Offices 400
sq. ft. Four (4) at 100 sq. ft. each
12. Meeting Room 1200 sq. ft
Two egress doors required for this room.
13. Staff Lunch Room 250
sq. ft.
Building Services
14. Storage Room (s) 200
sq. ft.
15.
Electrical Equipment Room 100 sq. ft.
16. Mechanical
Equipment Room 400 sq. ft
This room will house the air handling equipment
for all floors. All ducts originate
from this room.
17. Janitor’s Room 100
sq. ft./Floor
IMPORTANT NOTE:
·
All rooms shall be HC accessible.

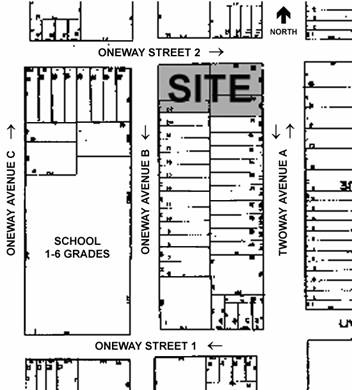

SITE MAP
SITE PLAN
Presentation
Requirements
§
Site Plan: 1/8” = 1’–0”
§
Floor Plan(s): ¼” = 1’-0”
§
(4) Elevations and (2) Sections: ¼” = 1’0”
§
Site and Building Model: 1/8” = 1’0”
§
Sketches, Renderings, Perspectives and/or Isometrics showing
design concept.
